SANNCE 8CH 1080N DVR CCTV System 5MP 1080P 2.0MP Security Cameras IR Outdoor IP66 Video Surveillance Kit Motion Detection 3.6MM

SANNCE 8CH 1080N DVR CCTV System 5MP 1080P 2.0MP Security Cameras IR Outdoor IP66 Video Surveillance Kit Motion Detection 3.6MM

Regular price 4 505 SEK
Regular price 10 512 SEK Sale price 4 505 SEK
Sale Sold out
Tax included.
Color
Build-in HDD
Ships From

SPECIFICATIONS

Model Number: DN81BS+T1GN*4/8

Smart home platform: NONE

PCS of Camera: 4PCS

PCS of Camera: 8pcs

Resolution: 2MP

Cable Length: 18m

Certification: CE

Camera Features: 1080P TVI High Definition,Outdoor;Day&Night;IR-CUT

System Feature: Scan QR Code;Easy Installation

Surveillance DVR Feature: 1080P,5IN1,HDMI ,P2P,QR to Remote Access

DVR Recording Mode: Continuous, Time Shcheduled, Motion Detection

Number of Cameras: 4/6/8pcs Bullet cameras

DVR/NVR Channels: 8 Channel

Remote View: For iPhone,iPad,Android PC:Linux,Windows System IE

Image sensor: 1/2.9" Progressive Scan CMOS

Angle of View: 82.2 degree

Night Vision Distance: Up to 100ft/30m

Video surveillance outdoor: Video surveillance

video surveillance cameras: Cctv system

Surveillance camera: Video surveillance kit



Note:

1.If you don't purchase a hard disk,you can't record and review the video.

2.If you purchase a package with a hard disk, the hard disk may be placed directly in the DVR or placed separately in the package. If you have any questions, please contact us.

3.Our 8CH DVR can connect 8 cameras max, so you can add extra cameras in the future.


DVR Features
. Support 8CH 1080N definition encoding
. Support AHD, TVI,CVI, CVBS, IP video input
. HDMI/VGA simultaneous video output
. 1 SATA (Up to 8TB)
. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
. Automatic networking support, a key to add equipment
. Support alarm information push to phone
. Support remote access, support ARSP
. Mobile phone remote monitoring (iOS, Android)
. Support Multi browser access,VMS PC client

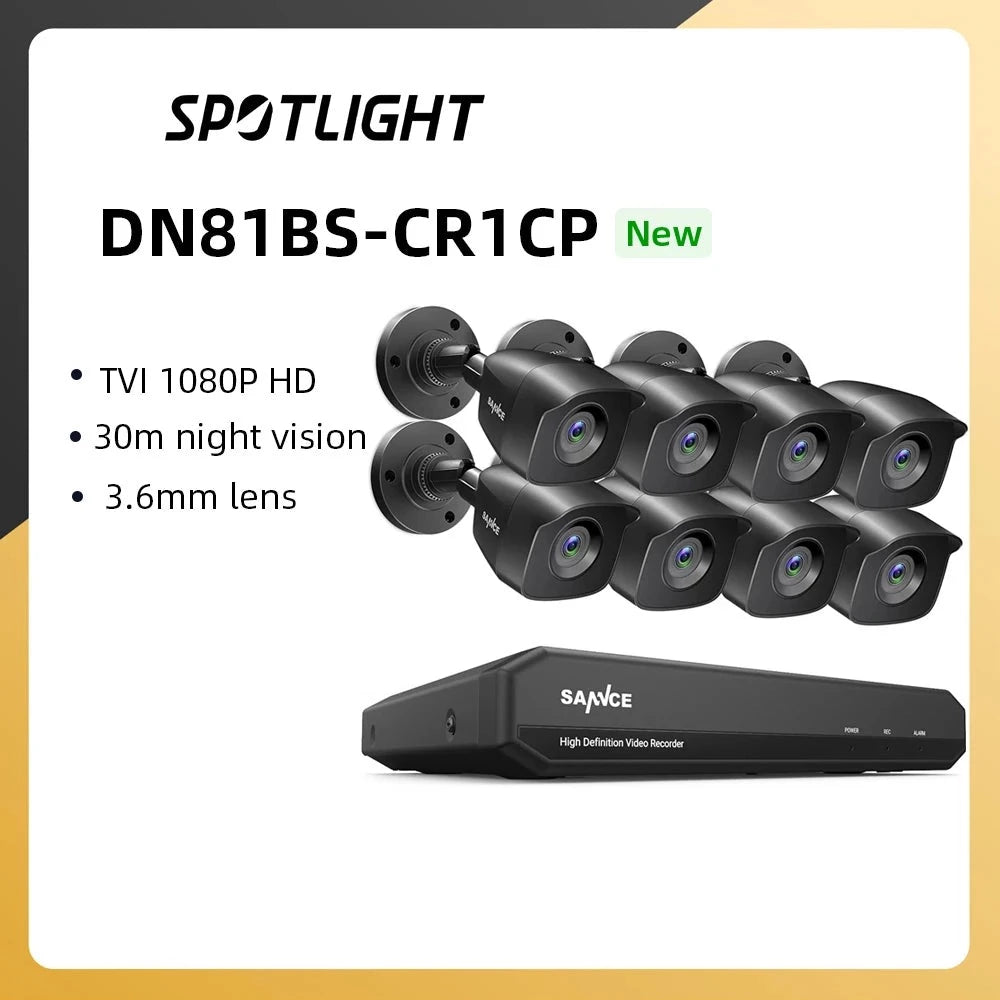

1080P Camera Features
★ TVI 1080P high clarity bullet camera
★ Up to 30m night vision with 12pcs IR leds
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating

5MP Camera Features

★ AHD 5MP high clarity bullet camera
★ Up to 30m night vision with 12pcs IR leds
★ Compatible with 12.5&20 frames 5MP DVR
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut
★ IP66 Dust and Waterproof Rating





Package Contents

4 X Camera ( no cable for United Kindom Warehouse)

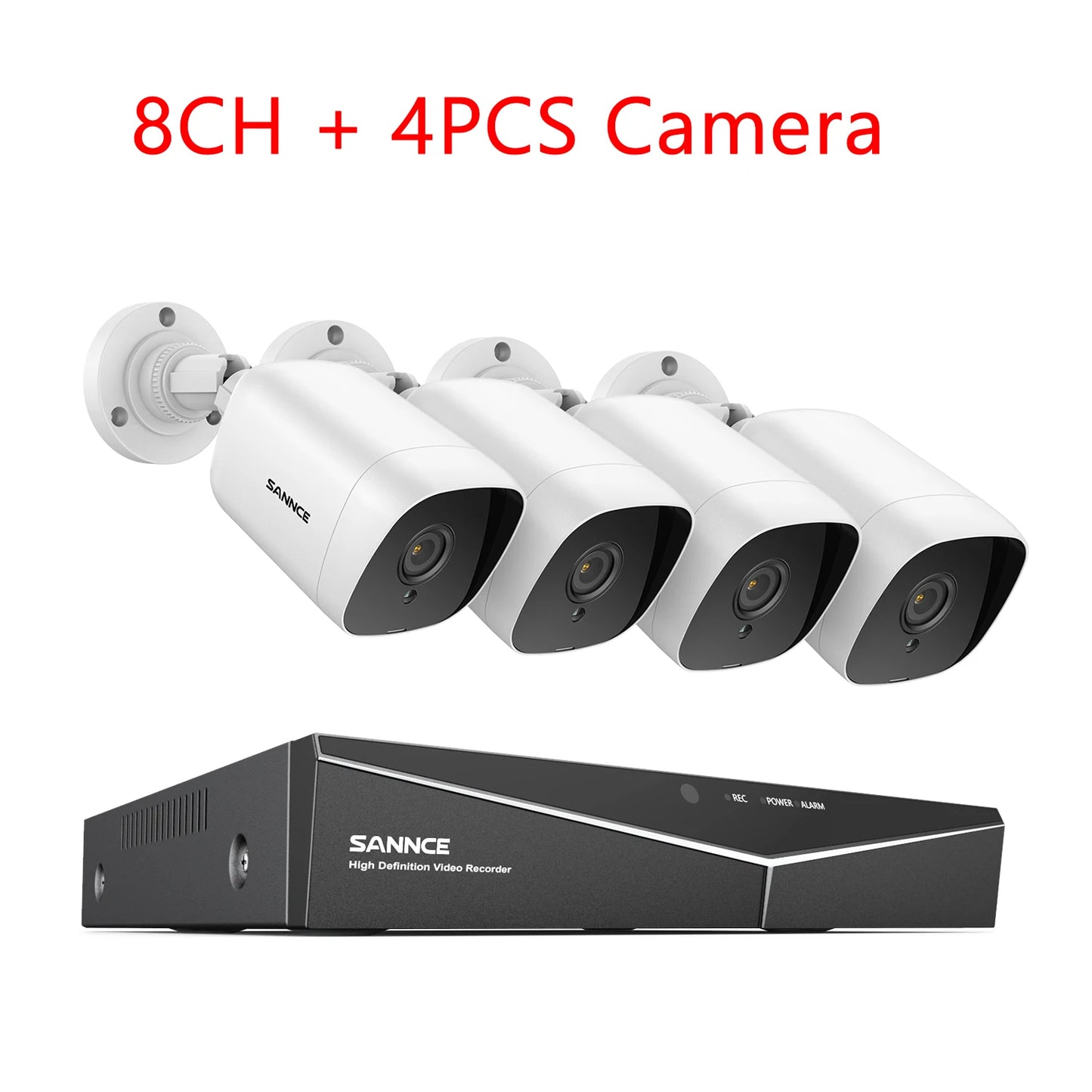

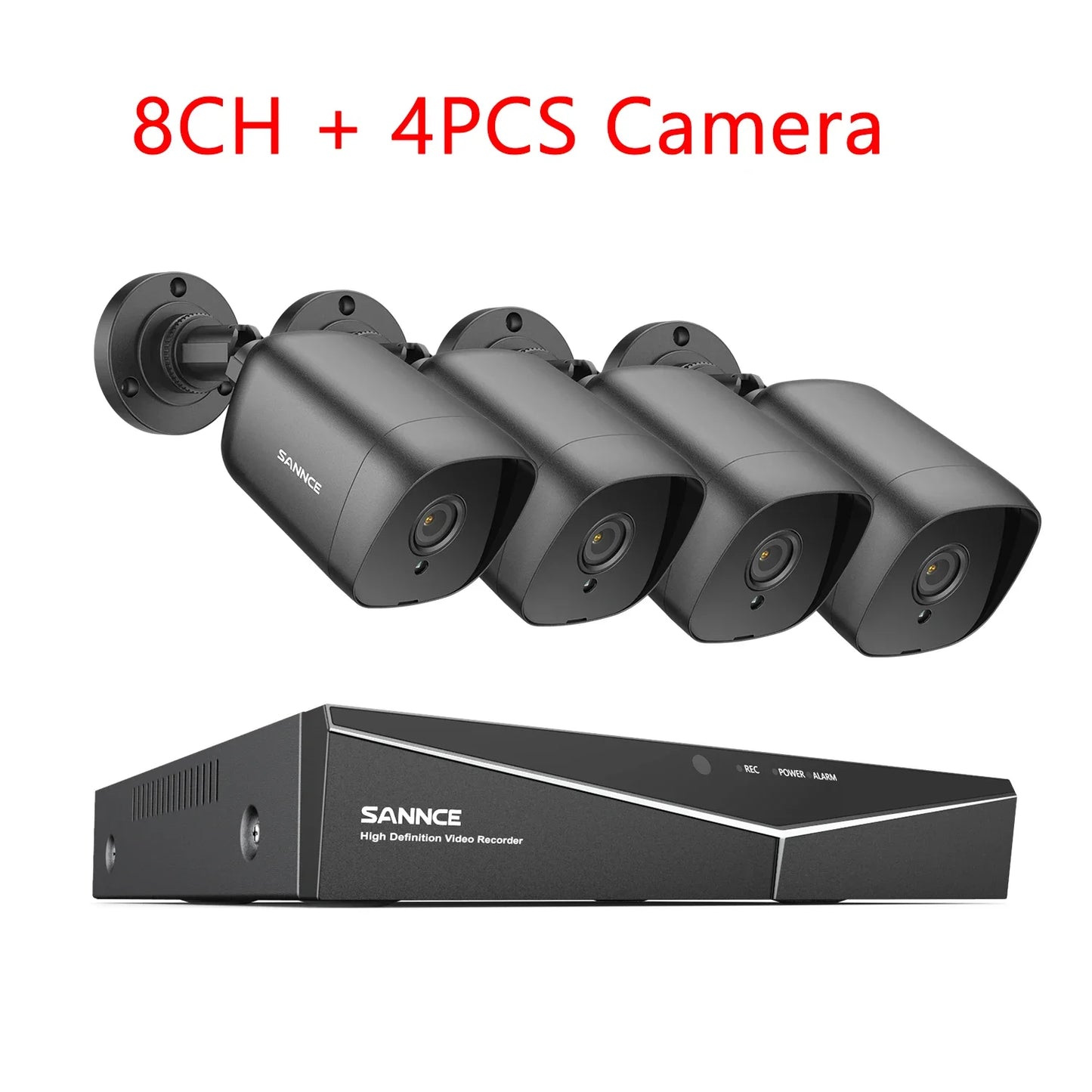

8CH 4PCS DVR Kit Pakcage Include:

1X DVR

4XCameras

4X 60 ft/18.3 m BNC Cables

2XPower Adapters

1X1-TO-4 Splitter Cable

1X USB Mouse

5X Window Warning Stickers

1X User Manual

4X Mounting Screw Bags

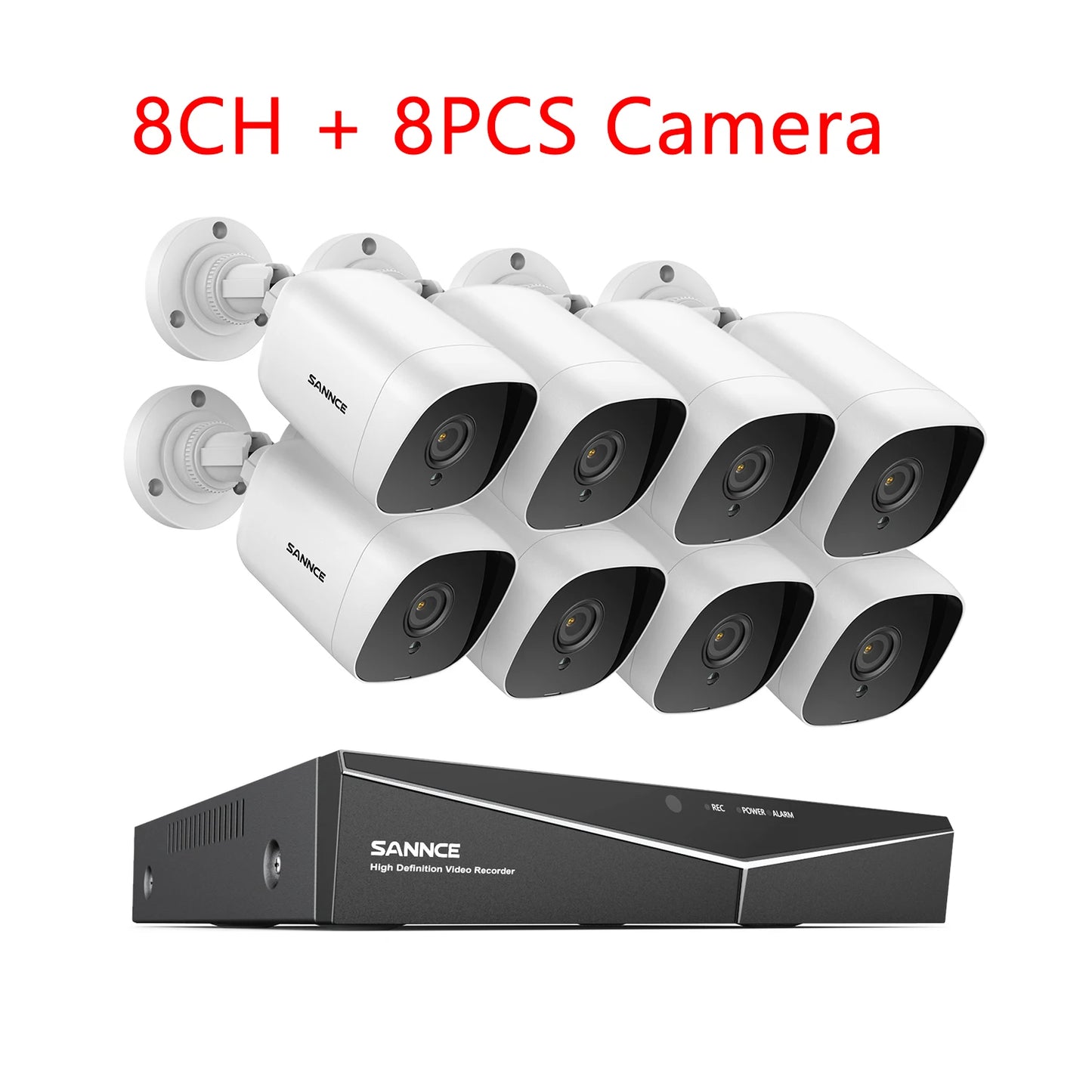

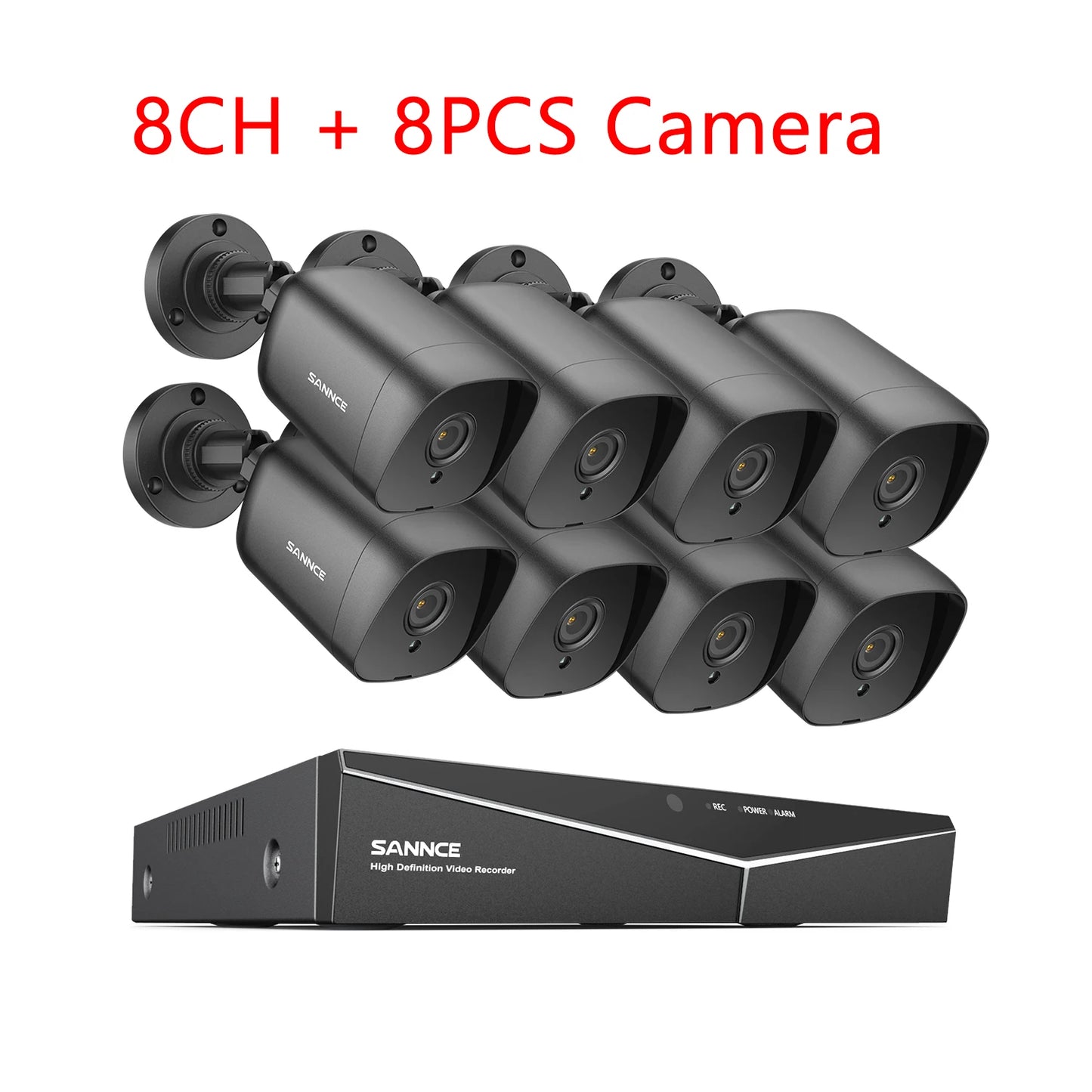

8CH 8PCS DVR Kit Pakcage Include:

1X DVR

8XCameras

8X 60 ft/18.3 m BNC Cables

3XPower Adapters

2X 1-TO-4 Splitter Cable

1X USB Mouse

9XWindow Warning Stickers

1X User Manual

8X Mounting Screw Bags

5MP HD Camera

Camera

Video Resolution

AHD 5MP(12.5&20 Frame )

Signal system

PAL/NTSC

Image sensor

Progressive Scan CMOS

Lens

3.6mm

Min.Illumination

0.02Lux@(F1.2 AGC ON),0Lux with IR on

Angle of View

70°

Number of Infra-Red LEDs

12

Night Vision Distance

Up to 100ft/30m

DNR

3D DNR

Wide Dynamic Range

Digital WDR

IR Cut Filter

Yes

Video Output

HD BNCx1

General

Housing

Plastic

Color

Black

Operating Power

DC12V

Operating Temperature

-4 °F – 140 °F /-20 °C – 60 °C

Indoor/Outdoor

Indoor/Outdoor

Weatherproof Rating

IP66

Dimension (L x W x H)

6.49” x2.36” x 2.36” / 165 x 60 x 60mm

Weight

0.33lbs / 150g

1080P HD Camera

Camera

Video Resolution

HD 1080P

Signal system

PAL/NTSC

Image sensor

Progressive Scan CMOS

Lens

3.6mm

Min.Illumination

0.02Lux@(F1.2 AGC ON),0Lux with IR on

Angle of View

70°

Number of Infra-Red LEDs

12

Night Vision Distance

Up to 100ft/30m

DNR

DNR

Wide Dynamic Range

Digital WDR

IR Cut Filter

Yes

Video Output

HD BNCx1

General

Housing

Plastic

Color

Black

Operating Power

DC12V

Operating Temperature

-40 °F – 140 °F /-40 °C – 60 °C

Indoor/Outdoor

Indoor/Outdoor

Weatherproof Rating

IP66

Dimension (L x W x H)

6.49” x2.36” x 2.36” / 165 x 60 x 60mm

Weight

0.33lbs / 150g

DVR

Video & Audio

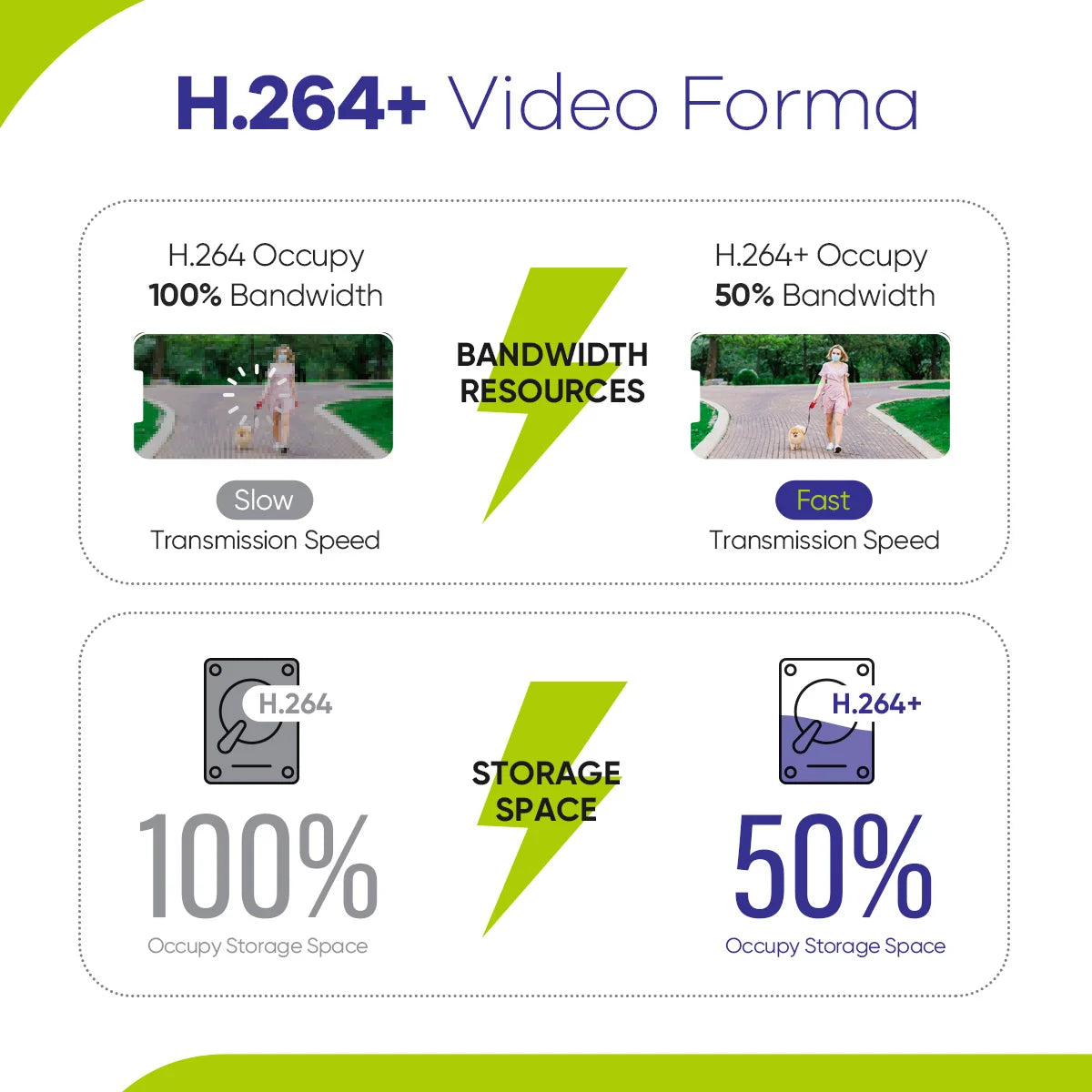

Codec

H.264+

Video input

8*BNC

HDMI output

1*HDMI (MAX:1080P)

VGA output

1*VGA (MAX:1080P)

Audio I/O

1/1

Encode

8*1080N@15fps

Decode

4*1080N@15fps

Multi-mode

Analog: 8*1080N@15fps;4*5M-N(21fps

Hybird: 8*1080N@15fps(analog)+2*1080P

IP: 16*1080P16*5MP

Playback

4CH (Analog mode)

Compression

G.711a

Intercom

Support

Hard Drive

HDD

1*SATA interface

HDD Capacity

Up to 8TB Capacity

Management

Record mode

Manual>Motion detection>Schedule

Inquire mode

Inquire by Time/Calendar/Event/Channel

Storage mode

Sata HDD

Backup

Network, USB storage

External Interface

Ethernet port

1*10/100Mbps Ethernet port, RJ45 port

Alarm I/O

/

PTZ control

/

USB Port

2*USB2.0 ports

General

Power supply

12V/2A

Consumption

<10W(Without HDD

Temperature

0- + 55

Humidity

10% -90% RH

Dimension

255(L)* 236mm(W)* 44mm(H)

Weight

Around 1KG
