SmartYIBA Video Door Phone 2/3/4/6/8/10/12 Multi Units Apartments Color Monitor Doorbell Home Video Intercom

SPECIFICATIONS



Connection Method: WIRED

Camera Sensor type: CMOS

Origin: Mainland China

Answering Mode: Hands-free

Display Size: 4.3

Display Screen Type: Color Touch Screen

Zone Input: None

Kit Configuration: One to Twelve Video Doorphone

Access Control: None

Type: Intercom System

Waterproof: Yes

Material: Anti-oxidation aluminium alloy panel

Smart home platform: NONE

IP Camera Interface: No

Samrt Home Interface: Yes

Installation: Wall Mounting

Resolution: > 420 TV Line

Connection Type: WIRED

Certification: CE

Plug Type: EU plug

Plug Type: US plug

Plug Type: AU Plug

Plug Type: UK Plug

Power: 11V-240v

Model Number: 530V43E168V12

Sensor Size(Inch): 1/4

Camera: color

Power: 220v

Viewing Angle (°): 92

Size: 4.3inch

Doorbell: Yes

Technology: DIGITAL









• 4.3 Inch TFT LCD indoor monitor,wire drawing acrylic case, slim design,fashionable Touch button

• Outdoor doobell camera:1/3'' COMS,3.6mm lens,1200TVL,IR day/night vision,Metal material&waterproof.

• Dual-way intercom, video and audio chat, Call transfer between monitor and doorbell,or monitor and monitor

• Support RFID Function, it can open the lock by RFID Card or RFID Keyfobs



   4.3 inch LCD monitor including one 1000TVL outdoor camera and one indoor monitor, which combines functions of visual intercom, real-time surveillance, remote unlock, rainproof and night vision, which is widely used in villas, apartments,         houses, hotels, offices, public buildings and so on.

Fashionable Design
4.3 inch TFT display,wire drawing acrylic case,slim design.

Dual-way intercom,Video and Audio Chat
Support call transfer between monitor and doorbell,or monitor with another monitor in another room,downstairs or upstairs.

Day/Night Vision
IR LED offset lighting can obtain better evening viewing,the IR sensor will automatically switch to work day or night.

Applicable to all electronic locks

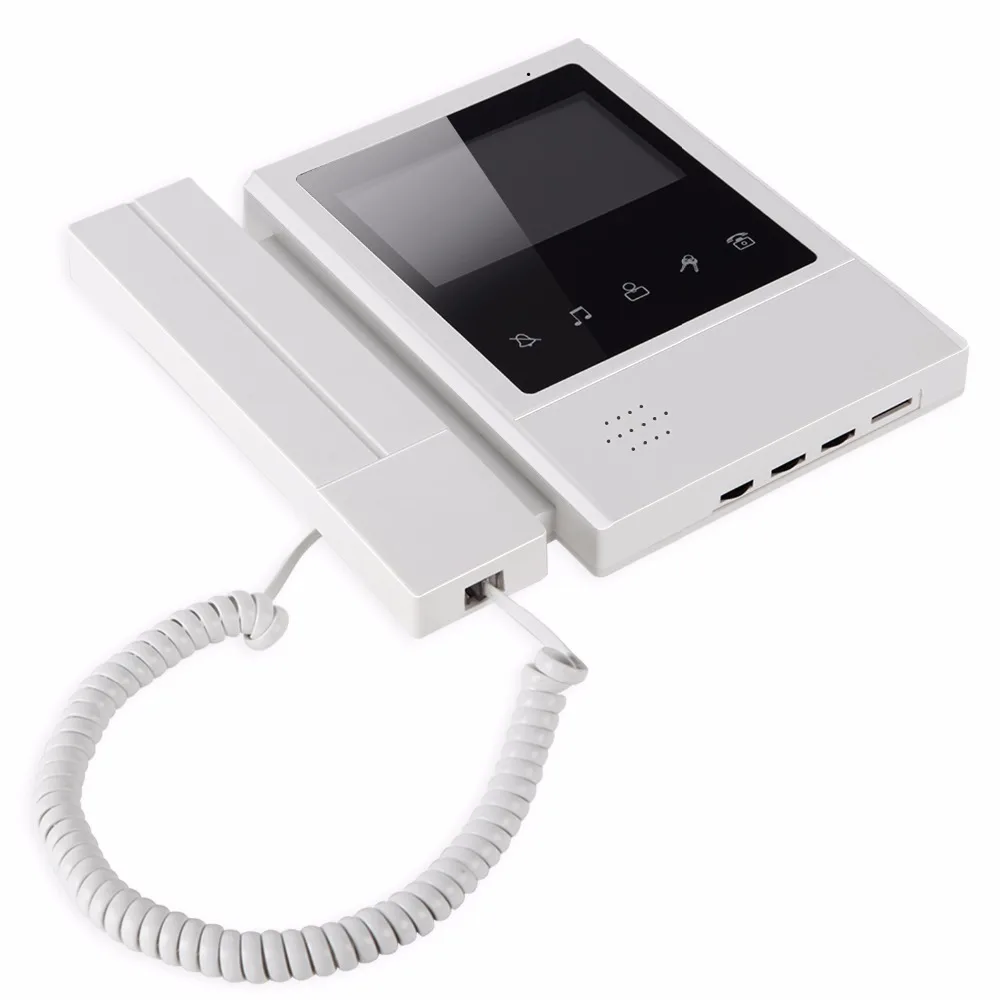

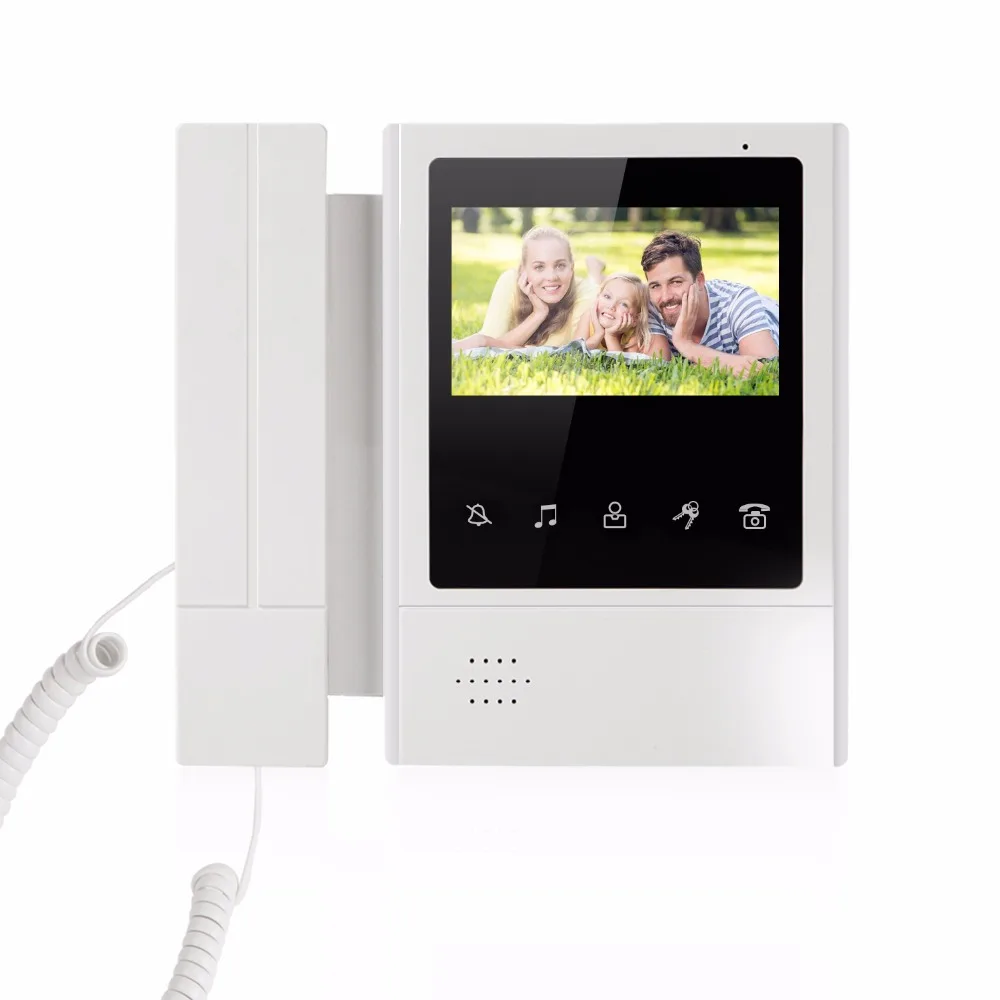

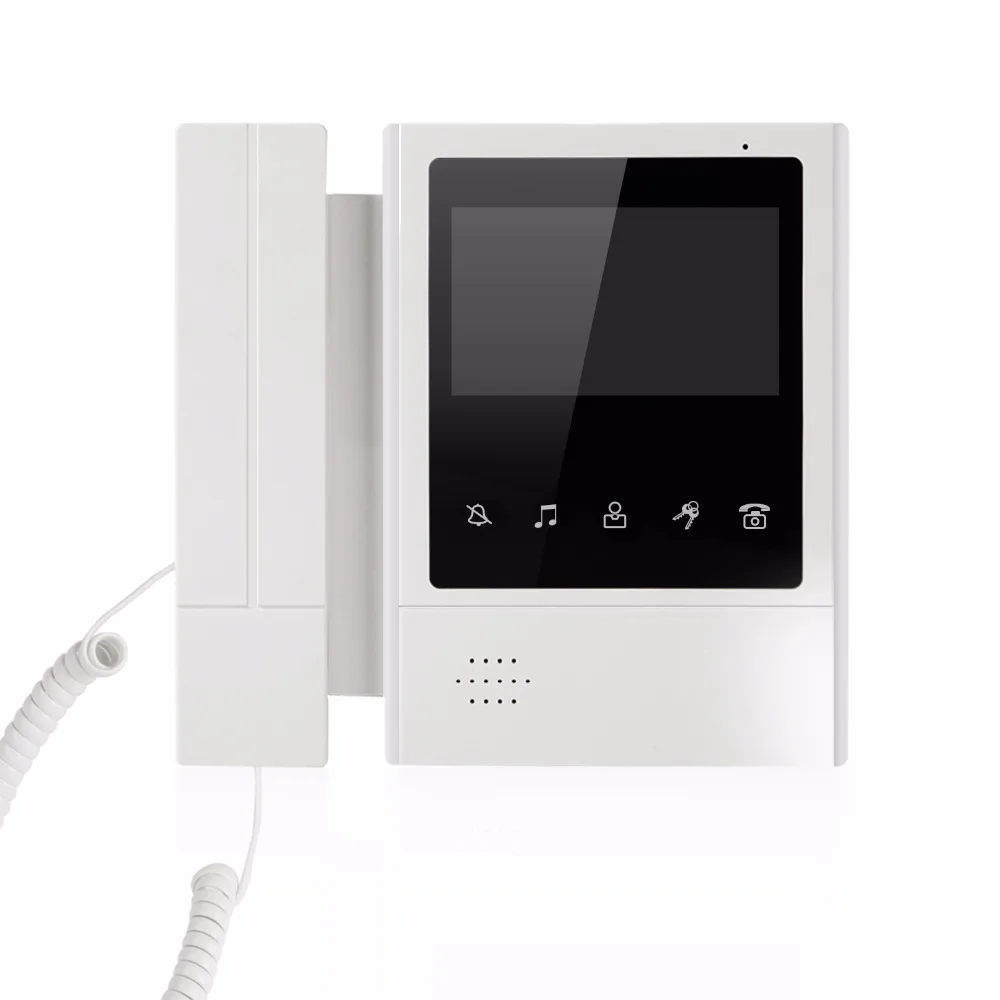

Indoor Monitor:
1. Monitor:4.3 inch TFT LCD
2. Resolution:320X240
4. Intercom mode: Hands-free Dual Intercom
5. Conversation duration:120s
6. Sensor Key:Yes
7. Power consumption:400mA max
8. Power supply:DC12V
9. Size:170x120x20.5mm
10.Material:Wire drawing acrylic case

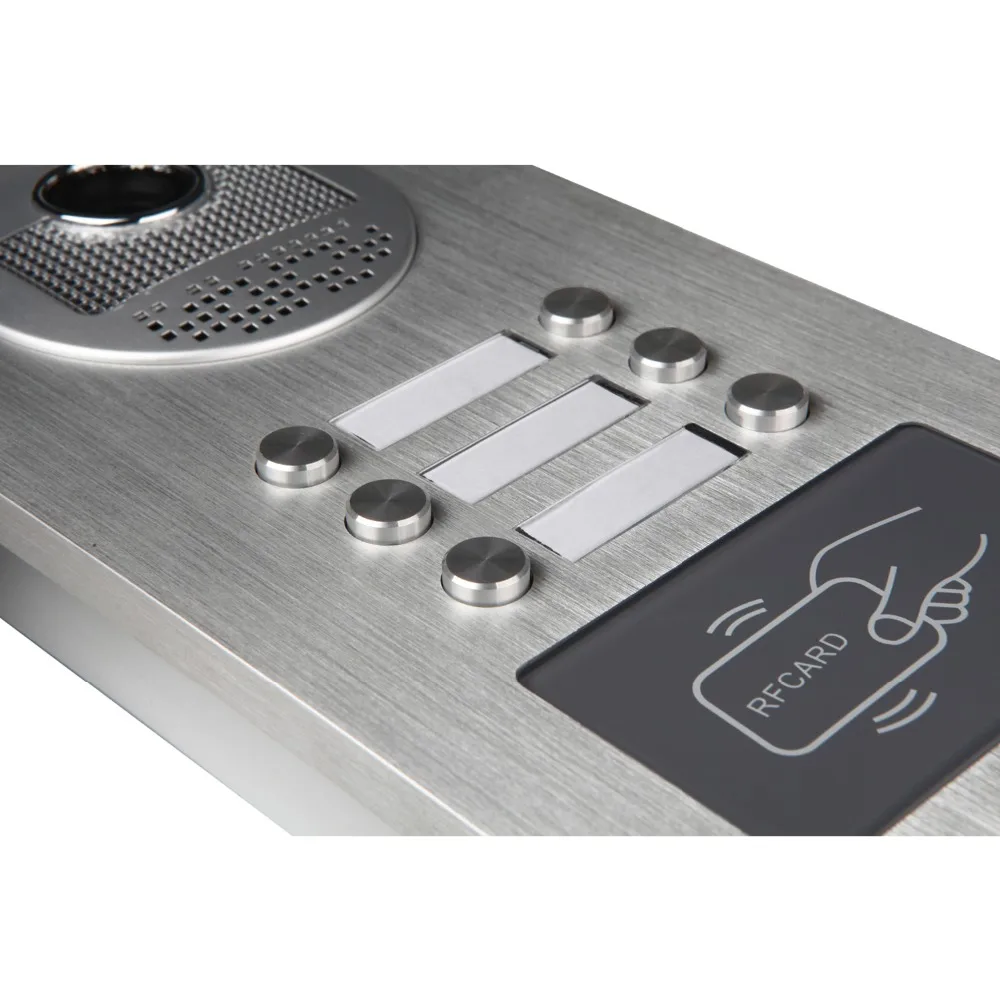

Outdoor Camera:
1. Camera Sensor:1/3" HD CMOS
2. Definition:1200TVL
3. Lens:3.6mm megapixel
4. View angle:68 degree
5. LEDs for night Vision:IR LEDs
6. Waterproof Level:IP65
7. Size:122x41x23mm
8. Material:Aluminum Alloy

9.Support RFID CARD



>>>Standard package



530V43E168V12=1 * Outdoor Camera with proof shell+12 * Indoor Monitor+12 * Power Adapter+Accessories

530V43E168V10=1 * Outdoor Camera with proof shell+10 * Indoor Monitor+10 * Power Adapter+Accessories

530V43E168V8=1 * Outdoor Camera with proof shell+8 * Indoor Monitor+8 * Power Adapter+Accessories



530V43E168V6=1 * Outdoor Camera with proof shell+6 * Indoor Monitor+6 * Power Adapter+Accessories



530V43E168V4=1 * Outdoor Camera with proof shell+4 * Indoor Monitor+4 * Power Adapter+Accessories



530V43E168V2=1 * Outdoor Camera with proof shell+2 * Indoor Monitor+2 * Power Adapter+Accessories



Accessories Contents as below:

1 * connecting cable (16ft/5m)

1 * Bag of screws

1 * User manual

2* RFID Keyfobs
